The RV-5A rotary evaporator is engineered to deliver high performance, intuitive operation, and longterm reliability across research, quality control, and production environments.
With its motorized lift, clear LCD interface, and precise control of speed and temperature, RV-5A ensures efficient, safe, and highly reproducible distillation workflows.
Designed for demanding applications in the pharmaceutical, chemical, cosmetic, food, and academic sectors, RV-5A represents a new benchmark in vacuum evaporation technology.
Achieving an evaporation rate of up to 22 ml/min, the system enables rapid processing while maintaining consistent results.
The 20-300 rpm adjustable rotation and minimum achievable vacuum of 8 mbar allow gentle evaporation of high-boiling solvents, preserving the integrity of thermally sensitive compounds.
Motorized lift for smooth and precise positioning of the evaporation column
LCD display with control knob for fast access to key operating parameters
Over-temperature safety alarm
PTFE vacuum seals ensuring excellent chemical resistance and long-term vacuum stability
Vent valve for controlled introduction of air into the system
Features
Motorized lift for smooth and precise positioning of the evaporation column.
LCD display with control knob for fast access to key operating parameters.
Over-temperature safety alarm.
PTFE vacuum seals ensuring excellent chemical resistance and long-term vacuum stability.
Vent valve for controlled introduction of air into the system.
WATER BATH (Ambient +5 °C … 99 °C): ideal for delicate evaporations.
Supplied as standard
The new RV-5A rotary evaporator is supplied as standard with a complete accessory kit, including: - 2 connection tubes - a 1000 ml evaporation flask (NS 29/32 ground joint) - a 1000 ml receiving flask (KS 35 spherical joint) This configuration is suitable for most laboratory applications. The complete kit (p/n 41203032 o 41203042) includes, in addition to the RV-5A and the accessories listed above: - C-20 chiller - VP-20 vacuum pump - VC-50 vacuum controller. The kit is available in two versions: - with water bath - with oil bath

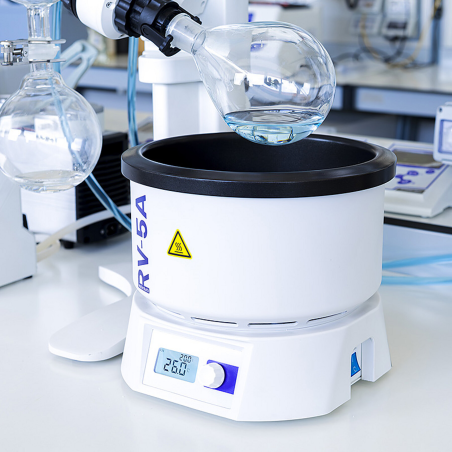

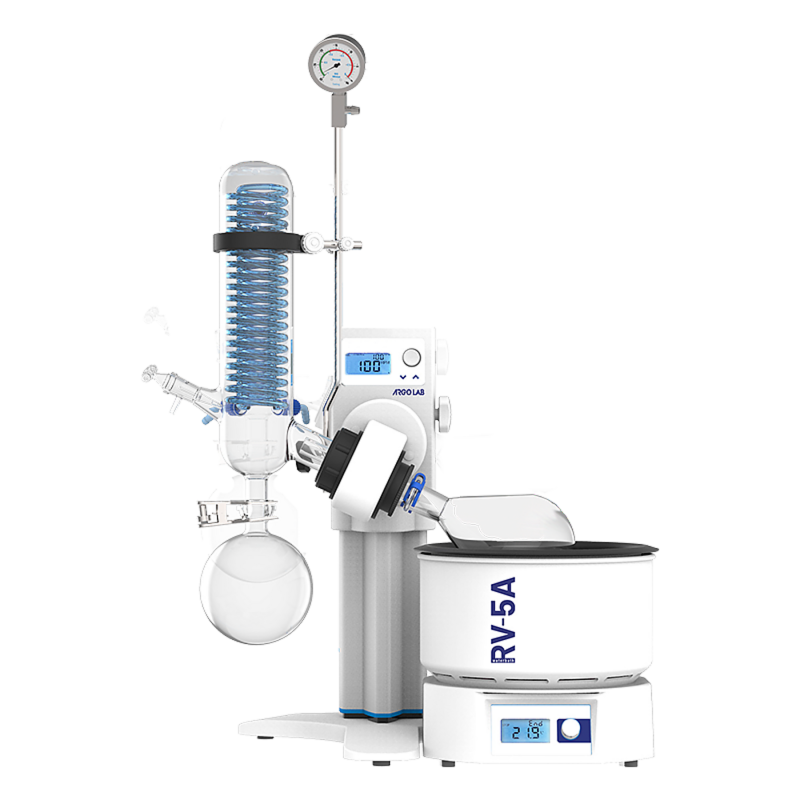

Rotary Evaporator RV-5A
€3,850.00
Tax included
The RV-5A rotary evaporator is engineered to deliver high performance, intuitive operation, and longterm reliability across research, quality control, and production environments.
With its motorized lift, clear LCD interface, and precise control of speed and temperature, RV-5A ensures efficient, safe, and highly reproducible distillation workflows.
Designed for demanding applications in the pharmaceutical, chemical, cosmetic, food, and academic sectors, RV-5A represents a new benchmark in vacuum evaporation technology.
Achieving an evaporation rate of up to 22 ml/min, the system enables rapid processing while maintaining consistent results.
The 20-300 rpm adjustable rotation and minimum achievable vacuum of 8 mbar allow gentle evaporation of high-boiling solvents, preserving the integrity of thermally sensitive compounds.
Motorized lift for smooth and precise positioning of the evaporation column
LCD display with control knob for fast access to key operating parameters
Over-temperature safety alarm
PTFE vacuum seals ensuring excellent chemical resistance and long-term vacuum stability
Vent valve for controlled introduction of air into the system
Features
Motorized lift for smooth and precise positioning of the evaporation column.
LCD display with control knob for fast access to key operating parameters.
Over-temperature safety alarm.
PTFE vacuum seals ensuring excellent chemical resistance and long-term vacuum stability.
Vent valve for controlled introduction of air into the system.
WATER BATH (Ambient +5 °C … 99 °C): ideal for delicate evaporations.
Supplied as standard
The new RV-5A rotary evaporator is supplied as standard with a complete accessory kit, including: - 2 connection tubes - a 1000 ml evaporation flask (NS 29/32 ground joint) - a 1000 ml receiving flask (KS 35 spherical joint) This configuration is suitable for most laboratory applications. The complete kit (p/n 41203032 o 41203042) includes, in addition to the RV-5A and the accessories listed above: - C-20 chiller - VP-20 vacuum pump - VC-50 vacuum controller. The kit is available in two versions: - with water bath - with oil bath
Security policy
Delivery policy
Return policy
Features
Security class 3.1
Frequency 50/60
Warranty 2
Weight 15
Weight (with packaging, no rotor) 30
Absorbed power 1000
Temperature resolution 0,1
Timer 99:59 or continuous mode
Type of motor DC brushless
Useful volume 5
Power supply 230
Supplied as standard Set of 2 x 1,5 m pipes with insulating material
Overtemperature security Electronic and electromechanical
Working temperature RT+5°C ... 99
Display LCD
Regulations 2014/30/EU, 2014/35/EU, 2011/65/EU, 2006/42/EC, EN 61010-1:2010+A1:2019, EN 61326-1:2021, EN 61010-1:2010+A1:2019, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 60204-1:2018, EN ISO 12100:2010
Packaging dimensions (W x D x H) 670 x 620 x 620 mm
Rotation speed 20-300 rpm
New 1
ONLINE 1
Evaporating Speed 22 ml/min
Ultimate vacuum 8
Speed settings LCD display with knob
Temperature settings LCD display with knob
Lift Automatic

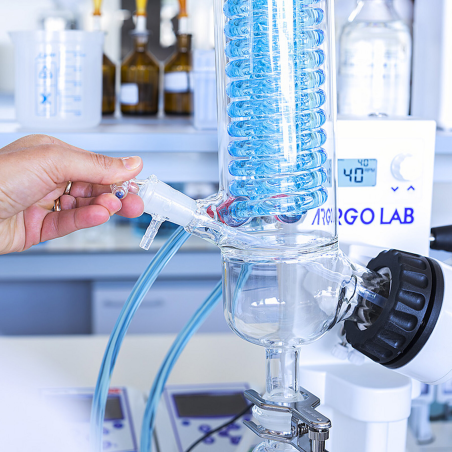

Condenser Coil, condensation areas: 0.15m²
Glassware supplied as standard 1000ml evaporating flask (NS 29/32), 1000ml receiving flask (KS 35/20)
Gaskete PTFE
Bath material Stainless Steel and PTFE
Internal Bath Dimensions Φ 230 x 130 mm
External dimensions (with glassware) WxDxH 470 x 400 x 710-810
Lift Stroke 100 mm
